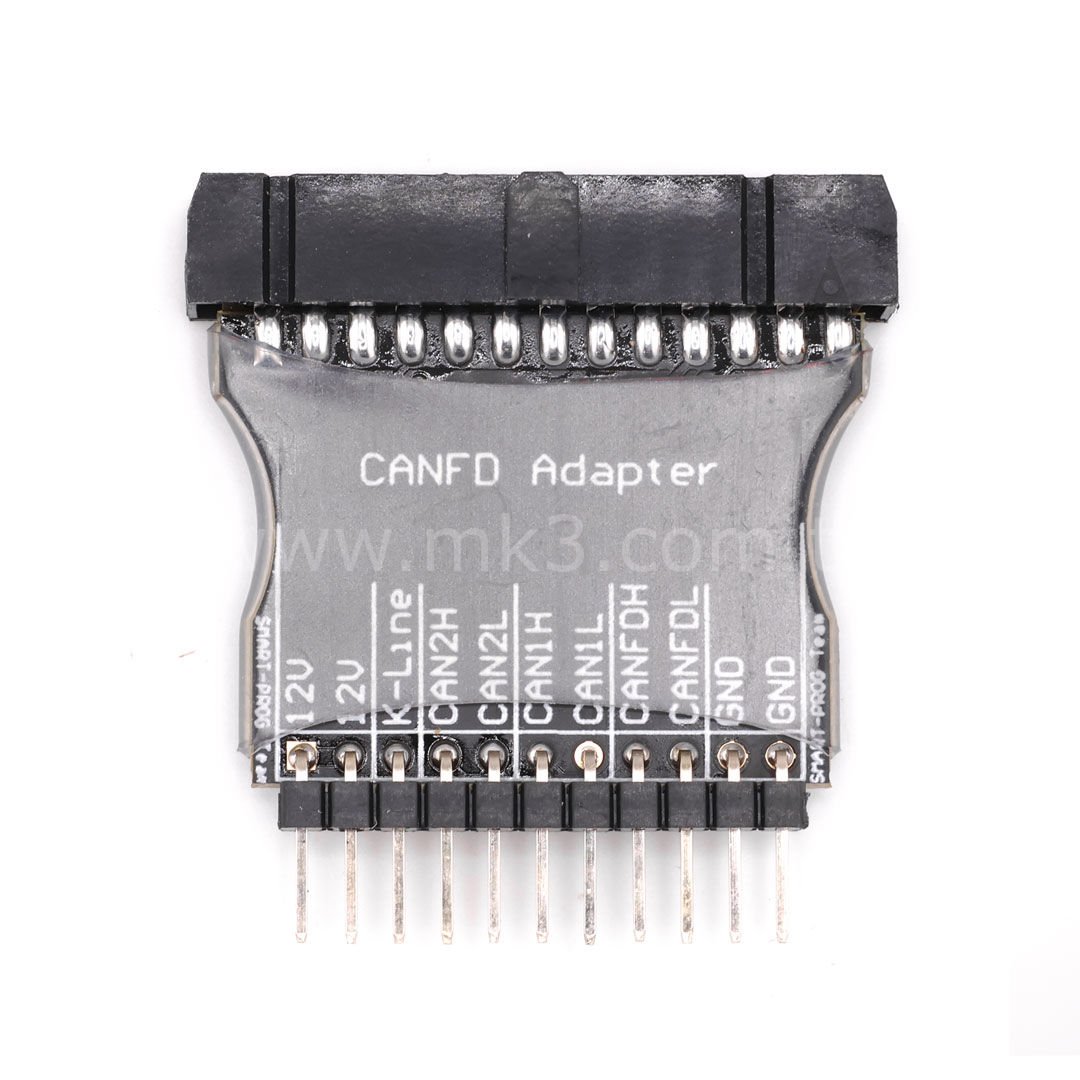

DiagCar SMARTOBD CAN FD ADAPTÖR

DiagCar SMARTOBD CAN FD Adaptör Desteği CANFD Listesi

DiagCar SMARTOBD CAN FD Adaptörü Özellikleri:

Üretici : DiagCar
Durum : Yeni

• SMARTOBD CAN FD ADAPTÖRÜ CAN FD protokolünü destekler.

• Masada CAN FD ile arıza tespiti ve kaza verilerinin onarımı.

• Bağlantısı basit ve kullanımı çok kolay.





ARAÇLAR 2020/2023 ONARIM ÇÖZÜMÜ

SMARTOBD CAN FD ADAPTÖRÜ gereklidir.

DiagCar SMARTOBD CAN FD Adaptörü nasıl kurulur

1. CAN FD ADAPTÖRÜNÜZÜ SmartOBD'ye bağlayın.
2. AST CAN yazılımını çalıştırın ve FW'nin v2.5'e güncellenmesini bekleyin
3. KIA veya HYUNDAI ( CAN FD ) seçeneğini seçin ve "yap" butonuna tıklayın.
4. "CAN FD Adaptörü Bağlandı ... tamam" yazısını bekleyin
5. CAN FD Adaptörünüz kullanıma hazır.

NOT:

Bir CAN FD Adaptörü yalnızca bir SmartOBD CAN Aracıyla çalışabilir.
Başka bir donanıma değişim yapamazsınız.
Set içerisinde SmartOBD bulunmamaktadır.

Desteklenen kontrolcü markaları ve tipleri, tam liste AST CAN yazılımında.

Hyundai

Hyundai, , Kıtasal, 95910-CH310 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CH320 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CJ310 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CW000 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CW100 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CZ000 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-CZ200 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-DW320 (CANFD), R7F7015803,
Hyundai, , Kıtasal, 95910-K5000 (CANFD), R7F7015803,
Hyundai, , Veoneer, 95910-AR000 (CANFD), TC233x-16F,
Hyundai, , Veoneer, 95910-AR100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-AR200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-AR300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2020 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2150 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P2300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4020 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4200 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4250 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4300 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4400 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-P4450 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0000 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0010 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0100 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0500 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R0600 (CANFD), TC23xx-32F,
Hyundai, , Veoneer, 95910-R5000 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T1000 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T1010 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T1020 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T1100 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T1200 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T6100 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T6120 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T6200 (CANFD), TC23xx-32F,
Hyundai, Genesis, Veoneer, 95910-T6400 (CANFD), TC23xx-32F,
Hyundai, EV6, Veoneer, 95910-CV000 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV100 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV200 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CV300 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CU000 CANFD, TC23xx-16F,
Hyundai, EV6, Veoneer, 95910-CU300 CANFD, TC23xx-16F,
Hyundai, , Veoneer, 95910-DS000 CANFD, TC23xx-16F,
Hyundai, Ioniq, Veoneer, 95910-GI000 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI100 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI200 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-GI300 CANFD, TC233x-16F,
Hyundai, Creta, Veoneer, 95910-JI000 (CANFD), TC22xx-16F,
Hyundai, Ioniq, Veoneer, 95910-KL000 CANFD, TC233x-16F,
Hyundai, Ioniq, Veoneer, 95910-KL200 CANFD, TC233x-16F,
Hyundai, , Mobis, 95910-AO100 (CANFD), 95512,
Hyundai, , Mobis, 95910-AO200 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT000 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT010 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT100 (CANFD), 95512,
Hyundai, , Mobis, 95910-AT300 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG100 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG400 (CANFD), 95512,
Hyundai, , Mobis, 95910-CG500 (CANFD), 95512,
Hyundai, , Mobis, 95910-N0000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N1000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N6000 (CANFD), 95512,
Hyundai, , Mobis, 95910-N8000 (CANFD), 95512,
Hyundai, , Mobis, 95910-T4000 (CANFD), 95512,
Hyundai, , Mobis, 95910-T4100 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8000 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8050 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8100 (CANFD), 95512,
Hyundai, , Mobis, 95910-L8200 (CANFD), 95512,

Öldü

KIA, , Continental, 95910-N7010 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N7030 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N7050 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N7070 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9000 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9010 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9020 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9030 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9050 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9060 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9080 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-N9110 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P0000 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P0010 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P0100 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P0110 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P1310 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P1320 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P1330 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P1340 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-P1350 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-R2110 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-R2120 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-R2310 (CANFD Adaptörüne ihtiyaç var), R7F7015803,
KIA, , Continental, 95910-R2320 (CANFD Adaptörüne ihtiyaç var), R7F7015803,

Toyota

Toyota, , Denso, 89170-02Y10 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-02W60 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-02W80 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-08110 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-08210 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-08230 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0A100 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0A140 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0A200 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0A220 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0C660 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0C670 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0C690 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0DE20 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0DE30 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0DF30 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0DF40 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0DF50 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0DG60 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0E330 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0E340 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0E350 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-0E430 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-0H220 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0H230 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-0R280 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-12G10 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-12G20 (sadece CANFD tanısı), CYT2B93BAC,
Toyota, , Denso, 89170-12L30 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-16180 (sadece CANFD teşhisi), R7F7016843,
Toyota, , Denso, 89170-28480 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-42F10 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-42690 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-42700 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-42720 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-42730 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-47B50 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-48J20 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-48J40 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-48E10 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-48E30 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-48E50 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-48F60 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-52Q10 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52Q20 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52Q30 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52Q50 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52Q60 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52Q70 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52P60 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52P70 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-52P80 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-60D70 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60D80 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60F10 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60F80 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60F90 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60G00 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-60G70 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-62050 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-78090 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-78150 (sadece CANFD teşhisi), R7F7016443,
Toyota, , Denso, 89170-78220 (sadece CANFD teşhisi), R7F7016843,
Toyota, , Denso, 89170-F6010 (tezgahta CANFD), R7F7016443,
Toyota, , Denso, 89170-K0010 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-K0030 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-K0060 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-K0070 (tezgahta CANFD), R7F7016843,
Toyota, , Denso, 89170-K0080 (tezgahta CANFD), R7F7016843,
