OBDSTAR P003 Bench/Bot ECU CS PIN İçin Adaptör Kiti

OBDSTAR P003 Adapter Feature:

For BOSCH ECU data reading, CS, Pincode reading etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...

OBDSTAR P003 Adapter Functions

For BOSCH ECU data reading, CS, Pincode reading etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.
More models are in development...

OBDSTAR P003 Adapter Supported ECU list:

BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

OBDSTAR P003 Adapter Compatible OBDSTAR tablets:

Used with OBDSTAR IMMO series tablets.

• X300 DP/Key Master DP
• X300 Pro4/Key Master 5
• X300 DP Plus/Key Master DP Plus

OBDSTAR P003 Adapter Supported ECU list:

1. Continental PCR2.1(TC1796) [SIMOS PCR 2.1 IMMO Data Reading Guide]

• 2010-2014 Audi A1 (8X) 1.6L Diesel

• 2009-2012 Audi A3 (8P) 1.6L Diesel

• 2009-2013 Seat Altea 1.6L Diesel

• 2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

• 2010-2012 Seat Leon II 1.6L Diesel

• 2014 Seat Toledo (KG) 1.6L Diesel

• 2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

• 2010-2013 Skoda Fabia II (5J) 1.6L Diesel

• 2010-2011 Skoda Roomster (5J) 1.6L Diesel

• 2013-2014 Skoda Rapid (NH) 1.6L Diesel

• 2011-2013 Skoda Superb (3T) 1.6L Diesel

• 2012/2015 Skoda Yeti (5L) 1.6L Diesel

• 2010-2015 VW Caddy (2K) 1.6L Diesel

• 2009-2013 VW Golf VI 1.6L Diesel

• 2010-2013 VW Golf Plus 1.6L Diesel

• 2011-2014 VW New Beetle (9C) 1.6L Diesel

• 2011 VW Passat (B7) 1.6L Diesel

• 2009-2014 VW Polo V 1.6L Diesel

• 2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

• Citroen C3 Mk2

• Citroen C4 Gran Picasso

• Citroen C4 MK2

• Citroen C5 (RD/TD)

• Citroen C6

• DS DS3

• DS DS5

• DS DS6

• Peugeot 2008

• Peugeot 208

• Peugeot 3008 (P84)

• Peugeot 3008 (T84)

• Peugeot 308 (T9)

• Peugeot 4008

• Peugeot 408

• Peugeot 508

3. Bosch EDC17C60(TC1793)

• Citroen Berlingo

• Citroen C-Elysee

• Citroen C3 Aircross

• Citroen C3 MK2

• Citroen C3 Picasso

• Citroen C4 Cactus

• Citroen C4 MK2

• Citroen C4 Picasso

• Citroen Jumpy

• Citroen Spacetourer

• DS DS3

• DS DS4

• DS DS5

• Peugeot 2008

• Peugeot 208

• Peugeot 3008 (P84)

• Peugeot 308 (T9)

• Peugeot 5008 (T87-P87)

• Peugeot 508

• Peugeot Expert

• Peugeot Ranch/Partner

• Peugeot Traveller

• Opel/Saturn/Vauxhall Combo E

• Opel/Saturn/Vauxhall Crossland X

• Opel/Saturn/Vauxhall Grandland X

• Toyota Proace

4. Bosch MD1CS018

• Mahindra BS-6

5. Bosch MED17XX/EDC17XX

• EDC17U01(TC1766)

• EDC17C46(TC1767)

• EDC17C54(TC1797)

• EDC17C64(TC1797)

• EDC17CP44(TC1797)

• EDC17CP44 MS(TC1797)

• MED17.5(TC1766)

• MED17.5.1(TC1766)

• MED17.5.20(TC1766)

• MED17.5.5(TC1766)

• MED17.5.5 HW2(TC1766)

• MED17.5.2(TC1767)

• MED17.5.5(TC1767)

• MED17.5.5 HW2(TC1767)

• MED17.5.21(TC1782)

• MED17.5.25(TC1782)

• MED17.1.1(TC1797)

• MED17.1.1 MS(TC1797)

• MED17.1.6(TC1797)

• VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

• ME17.5.6(TC1767)

• ME17.5.20(TC1767)

• ME17.1.1(TC1797)

• ME17.1.6(TC1797)

• VW/Skoda/Seat, Bentley

OBDSTAR P003 Adapter Advantages

1. Portable Design
2. Easy Operation
3. High Performance

OBDSTAR P003 Adapter Instructions

Used with OBDSTAR IMMO series tablets.

OBDSTAR P003 Adapter Specifications:

OBDSTAR P003 Adapter Accessories:

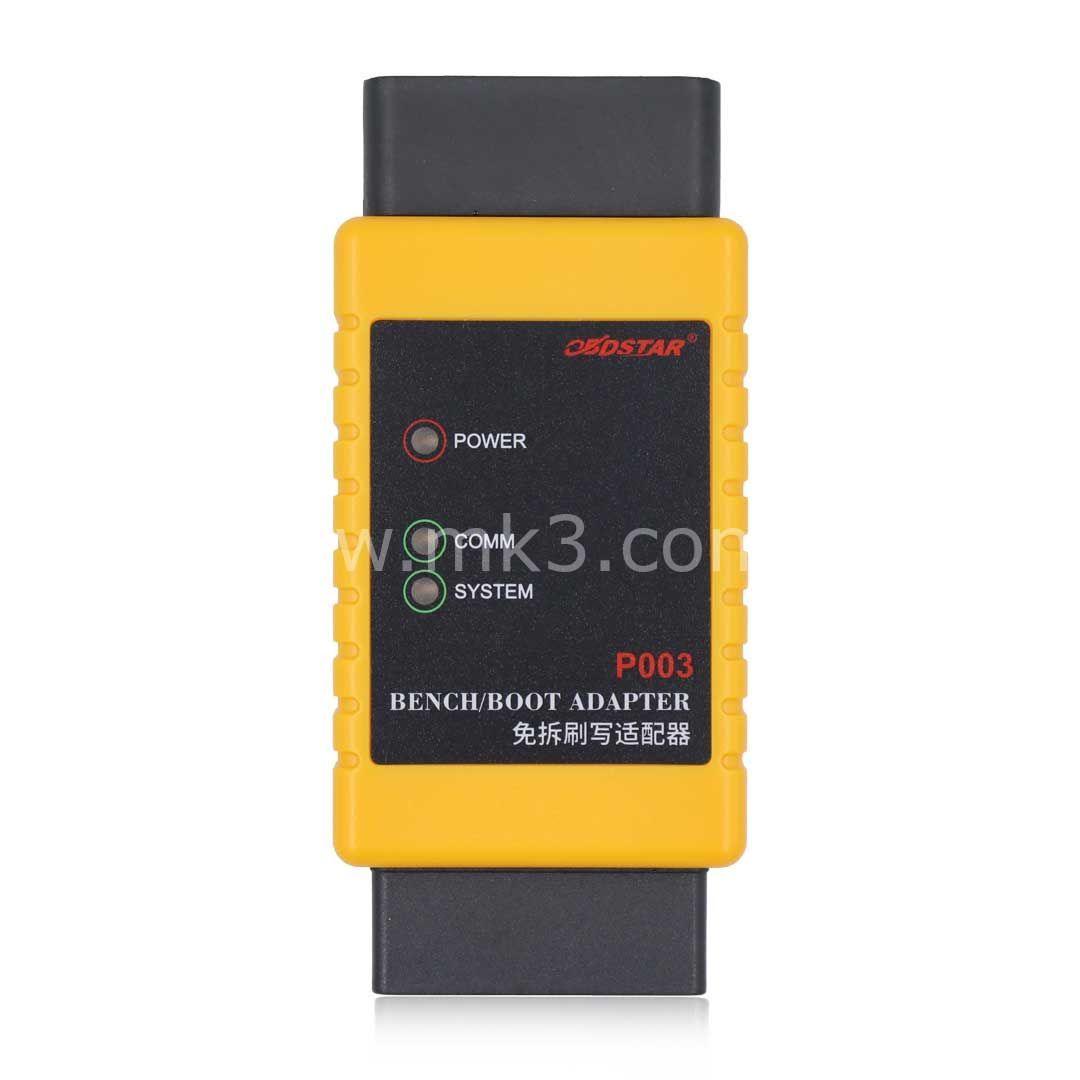

1. P003 adapter
2. ECU BENCH cables

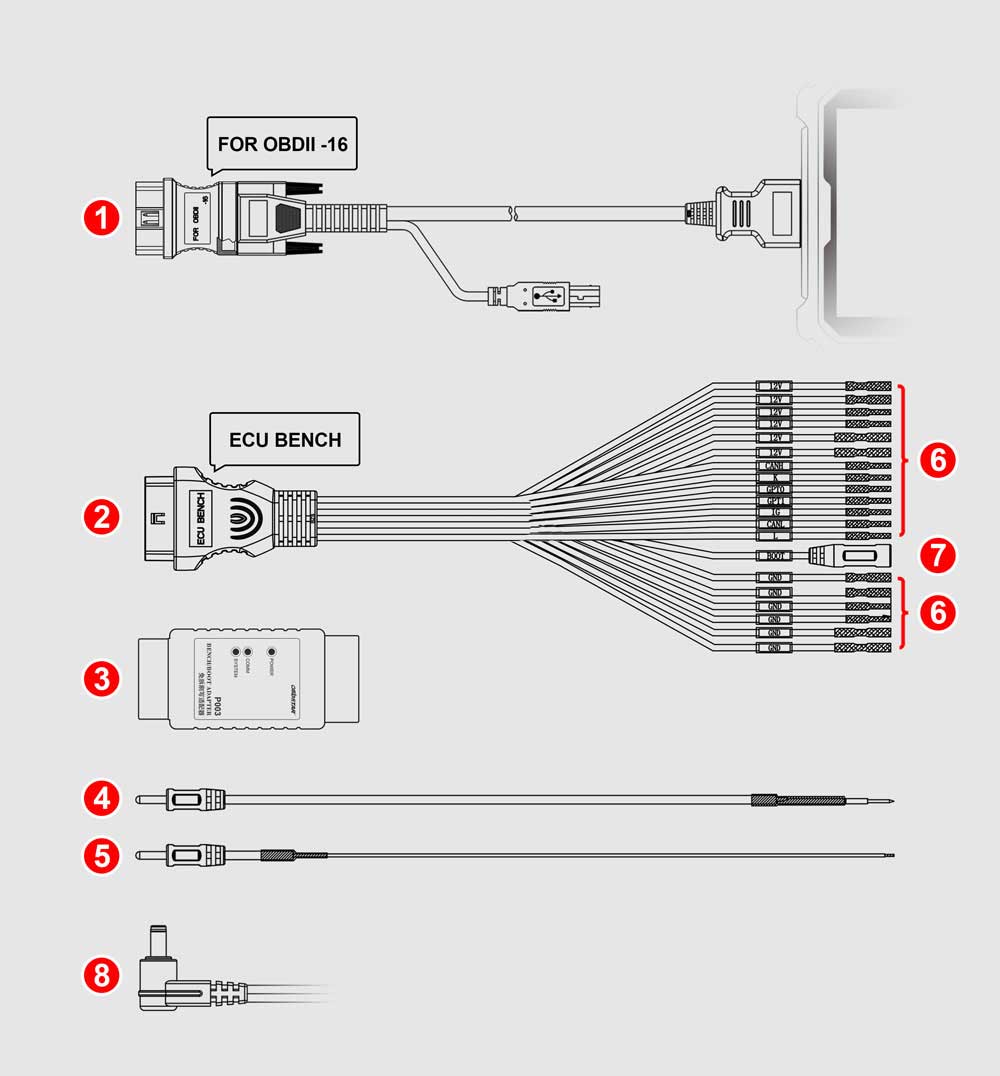

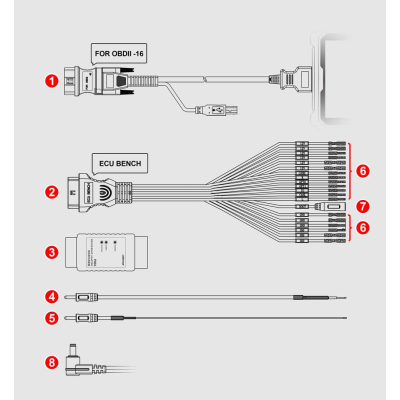

OBDSTAR P003 Harness Connection Diagram
